Connect Proteus 8 with Blynk Using Arduino: A Complete Step-by-Step Guide
Looking to seamlessly connect Proteus 8 with Blynk using Arduino? This detailed tutorial covers everything from setting up a Blynk account, installing Blynk libraries, configuring Arduino IDE, and troubleshooting Proteus 8 simulations. Start by creating a Blynk template, downloading the Blynk library from GitHub, and installing the Virtual COM Port Driver to establish communication between Proteus and Blynk. Configure Arduino IDE by adding the Blynk authentication token, selecting the correct virtual serial ports, and modifying the Blynk script for seamless integration. Finally, upload the code, run the Proteus simulation, and ensure smooth operation by troubleshooting common Blynk connection issues like server port mismatches or virtual COM port errors. This Arduino Proteus Blynk integration guide ensures a flawless IoT simulation setup, perfect for embedded systems projects and IoT development.
Step 1: Create a Blynk Account and Set Up a Template
Before we can start connecting Proteus with Blynk, we need to create an account on Blynk and set up a template.

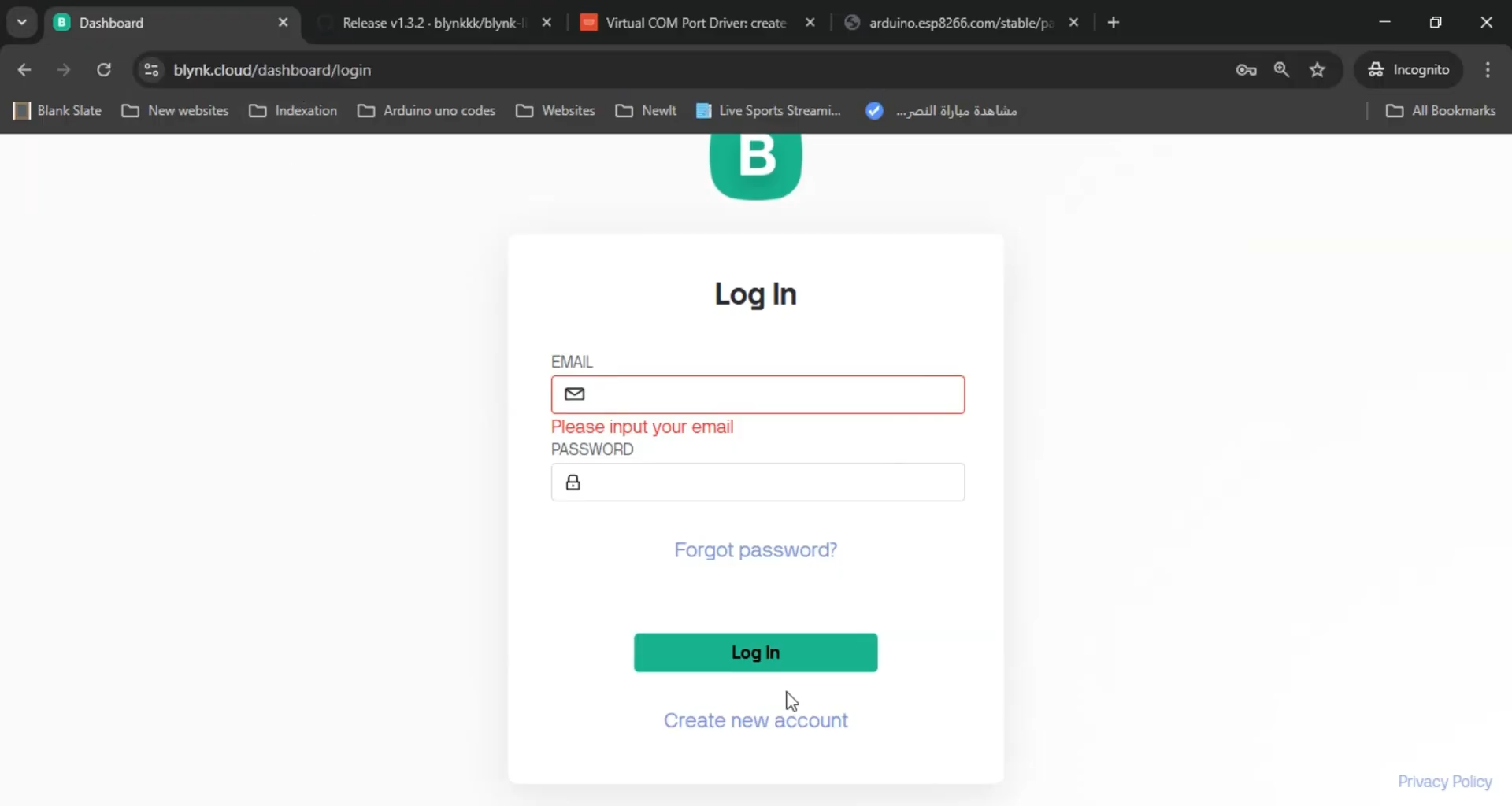

1.1 Sign Up on Blynk
- Go to the Blynk website and sign up.
- Use your email address to create an account.
- Check your email inbox for a confirmation mail and verify your account.
1.2 Create a New Template
- Log into Blynk.
- Click on New Template.
- Select Arduino as the hardware.
- Choose Wi-Fi as the connection type.
- Give your template a name (e.g., "Proteus Blynk").
- Save the template.
Step 2: Download and Install Required Files
To integrate Proteus with Blynk, we need to download and install some essential files.
2.1 Download the Blynk Library
- Visit the official Blynk GitHub page and download the Blynk Libray.
- Extract the downloaded ZIP file to a folder on your PC.
2.2 Install the Virtual COM Port Driver
- Download the Virtual COM Port Driver (this allows Proteus to communicate with your PC).
- Install it by following the on-screen instructions.
Step 3: Set Up Arduino IDE for Blynk
To make everything work, we need to configure Arduino IDE with Blynk.
3.1 Add Blynk Library to Arduino IDE
- Open Arduino IDE.
- Go to File > Preferences.
- Copy and paste the Blynk Library link in the Additional Boards Manager URLs field.
- Click OK.
3.2 Install the Blynk Library
- In Arduino IDE, go to file >preferences > Browse sketchbook location
- Search for library.
- past in it the files from extrated blynk release document.
3.3 Set Up Arduino Uno
- Go to Tools > Board and select Arduino Uno.
- Ensure that the correct port is selected under Tools > Port.
🔐 Unlock Step 4: Final Blynk Configuration!
You're almost there! Click the button below to subscribe to the @arduinounoprojex channel and instantly unlock **Step 4** (Copying the Auth Token, configuring the Blynk Dashboard, creating Datastreams) and the rest of the tutorial!
SUBSCRIBE & UNLOCK NOW✅ CONTENT UNLOCKED! Full Configuration Steps Below:
Step 4: Copy and Paste the Blynk Authentication Token
- In Blynk, go to your newly created template.
- Copy the Authentication Token provided.
- Open your Arduino sketch and paste the token where required.
- Make sure to have the auth tocken below right:
- Edit Blynk dashboard:
- Add switch
- Configure switch parameters
- Create datastream
- Create datastream: Name: virtual_pin_d7, virtual pin: D7, datastream type: integer
